DASH 1600 ATM Security Enclosure

by Dash ATM Enclosures

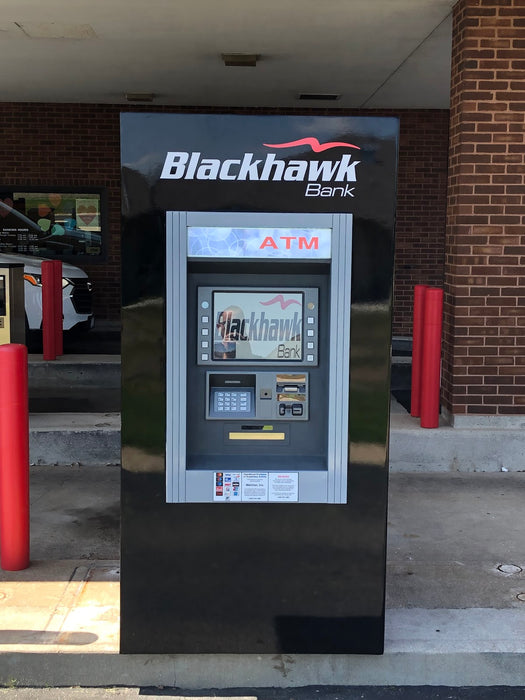

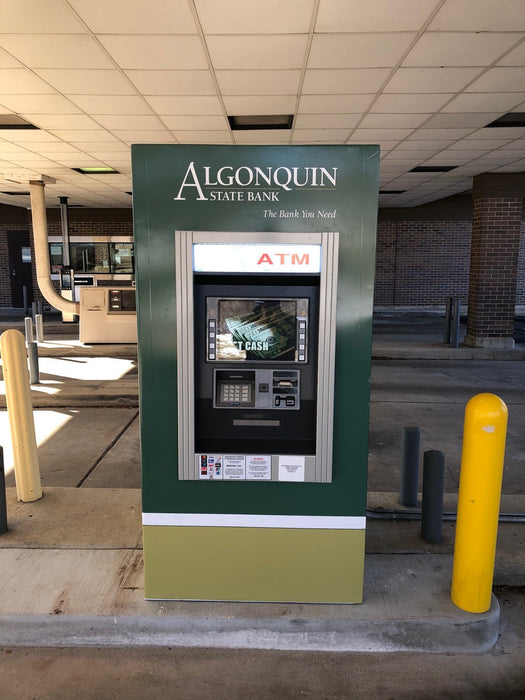

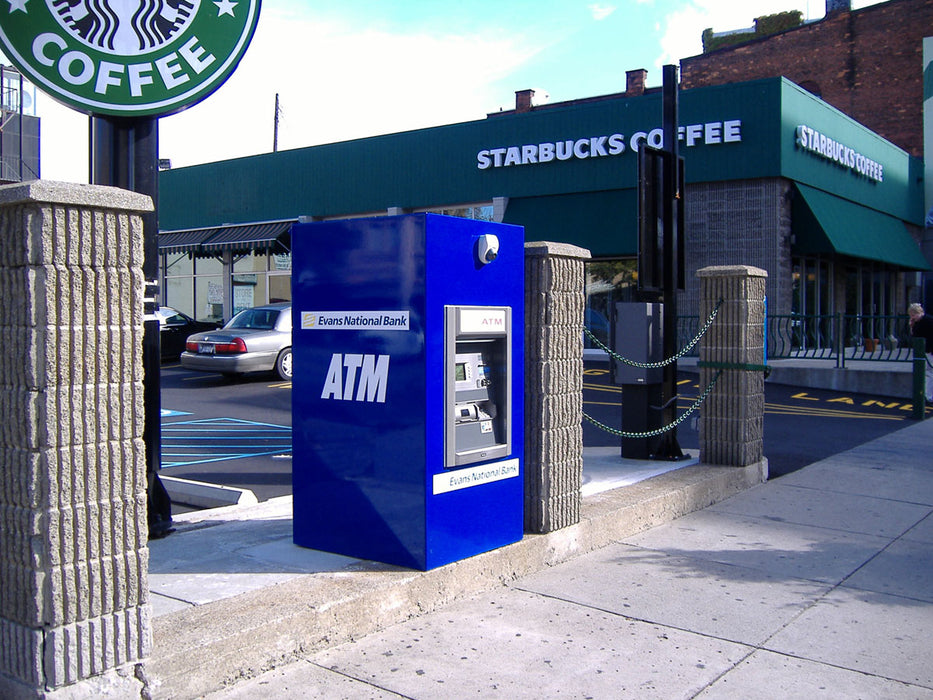

The DASH 1600 drive-up/walk-up enclosure is designed for placement where a compact enclosure footprint is desired.

Built with space in mind, accepting narrow ATM’s such as the Genmega GT5000, Hyosung 5100T, Triton Argo FT, and more.

Constructed of heavy gauge steel, equipped with the DASH exclusive high security locking system, automotive grade enamel paint, full foam insulation, 1/4" steel plate base for anchoring.

Approximate Weight: 750'

Dimensions: 72"h x 36"w x 39"d

Standard Features:

Dash Exclusive Dual Recessed R2 Locking System
Your Choice of Paint Color (any PMS code)
Cast Vinyl “ATM” Decals
Full Foam Insulation
Two (2) 20 Amp Breaker box
Pre-drilled Enclosure Mounting Holes
Pre-cut Base-Plate Power Egress Holes
Pre-cut ATM Mounting Hole
¼” Steel Base Plate
Door Rain Drip Edge

Options:

Heater
Thermostatic Exhaust Fan
Custom Logos
Custom Wraps
Two Color Paint Scheme
Fleet Key Matching

Data Sheet

Pad Drawing

$4,495.00 - $4,495.00

$4,495.00

$4,495.00 - $4,495.00

$4,495.00

Quantity

Delivery time

It takes time to build a high quality enclosure. Our typical lead time is 8-12 weeks. Call us for a more accurate lead time.

Recessed Key Locks

The recessed dual dead-bolt lock system is engineered for maximum resistance against forced entry. High-manganese armor, combined with a recessed housing and opposing bolt design, ensures protection against drilling, prying, and brute-force attacks.

Recessed housing reduces exposure to tools and tampering
Dual opposing dead-bolts eliminate single-point failure
Manganese steel armor work-hardens under drilling stress
Withstands >25,800 lbs of force in laboratory testing
Proven resistance to drilling, picking, prying, and punching

Fully Insulated

Every enclosure is insulated on all sides with radiant barrier foam, maintaining stable internal temperatures. This protection keeps ATM components cooler, reducing downtime and extending equipment life.

Branding Color

Enclosures and kiosks can be finished in any Pantone color, using automotive-grade polyurethane enamel. The coating resists fading and weathering, ensuring long-lasting brand visibility.

Branding Logo

Each unit is supplied with high-quality cast vinyl “ATM” graphics, which can be replaced with custom bank logos or full graphic wraps to enhance visibility and branding.

Internal Hinge Relocker

External hinges allow the doors to swing a full 180°, while internal relockers secure the unit if hinge tampering or cutting is attempted, preventing forced entry.

Highest Quality Metal Construction

Bodies are fully welded with no screws or rivets for maximum security. Enclosures are built from 10-gauge (0.125") steel, with base plates made of ¼" steel for added strength.

Dual Breaker Box

Each kiosk includes a breaker panel with two 20A breakers—one dedicated to the ATM and the other for auxiliary needs such as lighting, HVAC, or convenience outlets.

AC, Heat, and Exhaust Fan Options

Units are available with thermostatically controlled exhaust fans, air conditioning, and/or heating. These options keep internal temperatures within manufacturer specifications year-round. See product descriptions for details.

Pre-Cut for Your ATM

Enclosures are custom-prepped with through-wall openings and floor mounting rails cut to match the specific ATM model being installed, reducing installation time.

Pre-Drilled Enclosure Mounting Holes

Each base includes ¾” pre-drilled anchor holes, making it simple to secure the kiosk to a concrete foundation.

Pre-Cut Power Egress Holes

Power entry holes are precision cut in the base plate to allow concealed conduit runs. Replacement installations can be custom-cut to align with existing power locations.

Anti-Ram Base Plate

All of our indoor enclosures feature an anti-ram base plate. This unique design allows for the enclosure to be rammed with a vehicle or pulled with a chain and deform the base plate of the enclosure, keeping it secured to the concrete floor rather than snapping the anchor bolts giving the thieves access to the ATM.

Canopy Construction

Weight matters when installing a canopy and ensuring it stands up to the weather. All of canopies are constructed from rust-proof aluminum. The legs of the canopy are structured from 11ga thick steel with ¼” thick mounting plates.

*canopies available separately for purchase

Canopy Fabric

All of our canopy fabric utilizes Cooley-Brite fabric which is UV and weather repellent, water repellent, mildew resistant, and highly durable. The membrane features a nearly invisible scrim to permit maximum light diffusion. It offers excellent color protection and durability for a long service life. Designed to withstand 25 PSF snow load and up to 70 MPH wind speed.

*canopies available separately for purchase
