DASH ATM Swing Gate

DASH ATM Swing Gate

by Dash ATM Enclosures

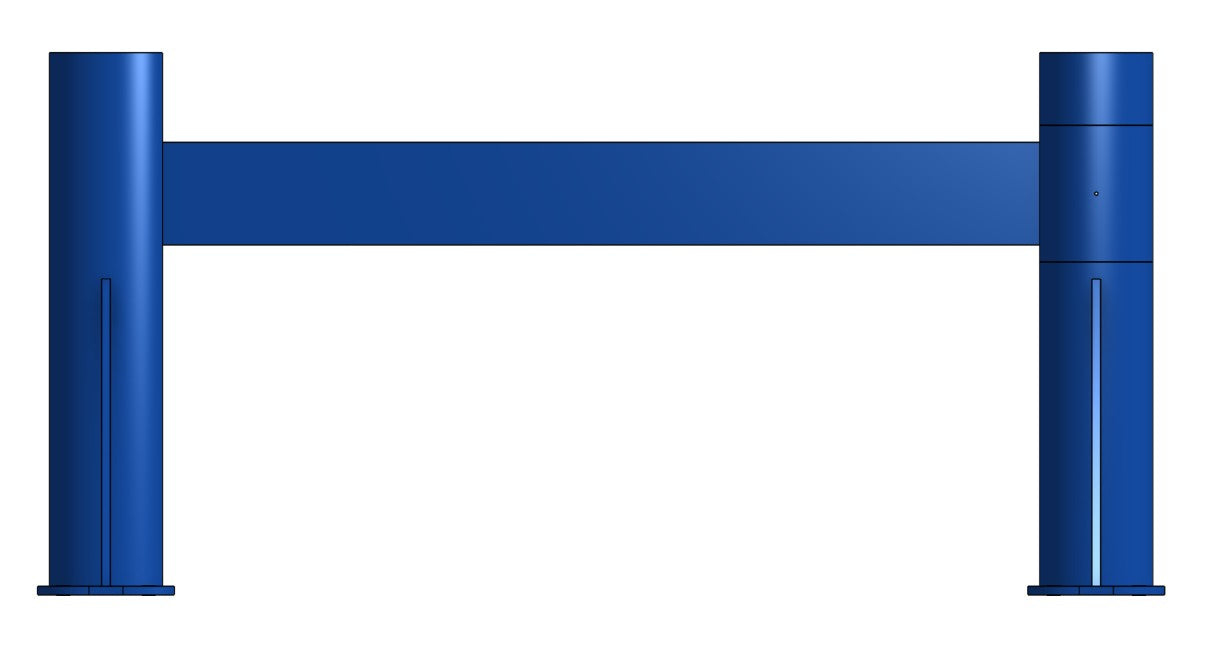

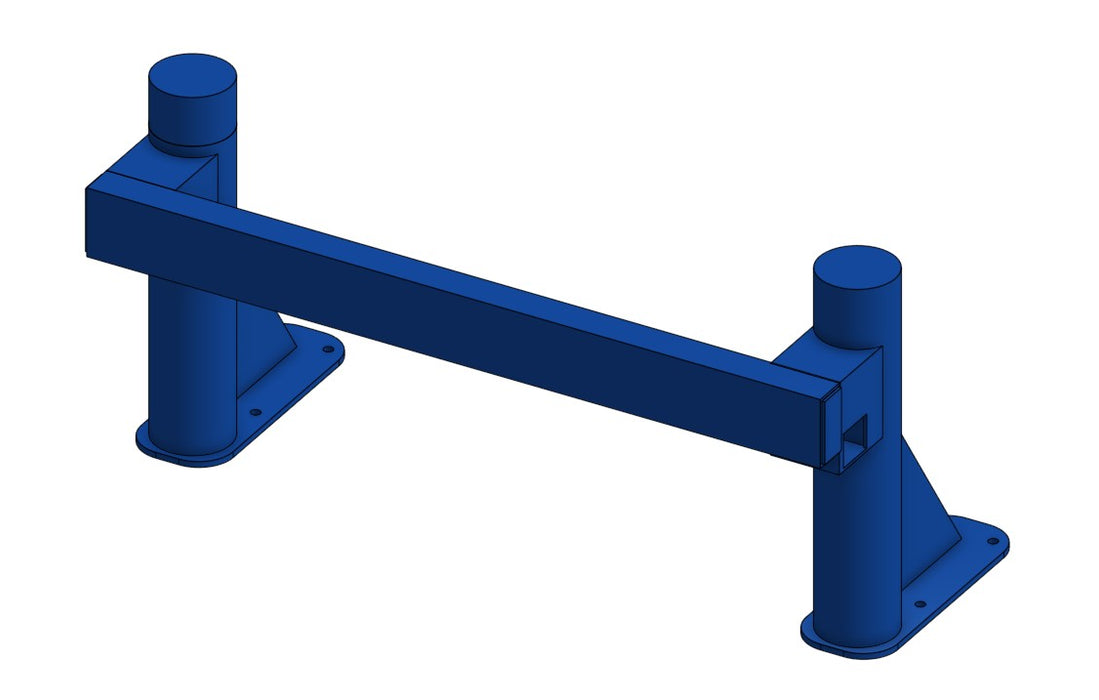

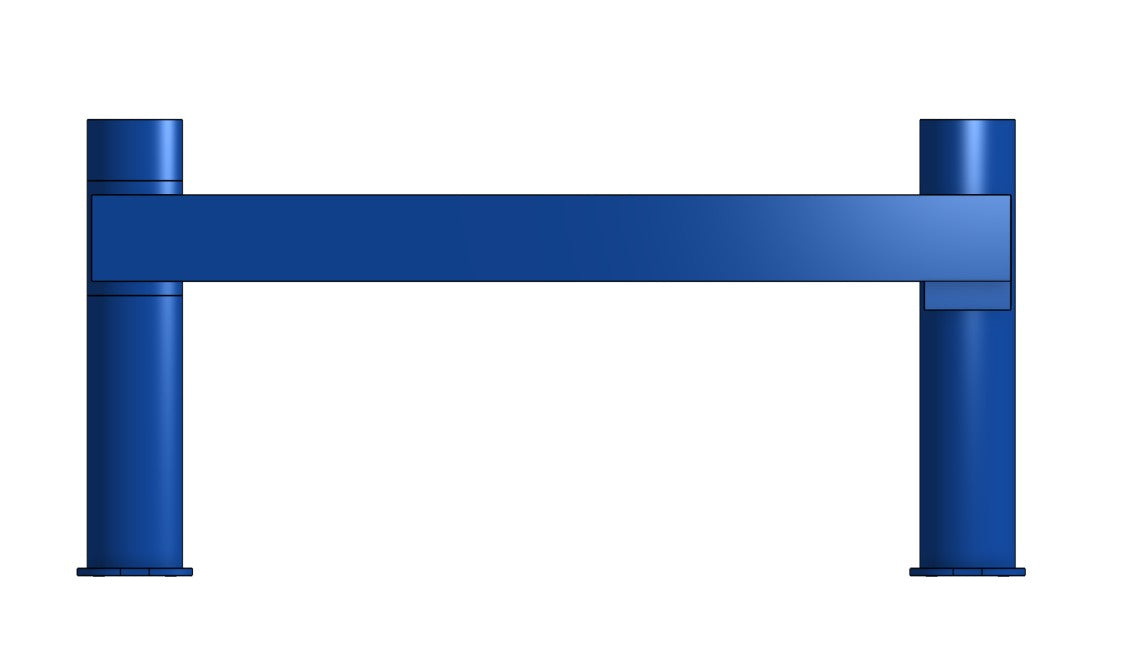

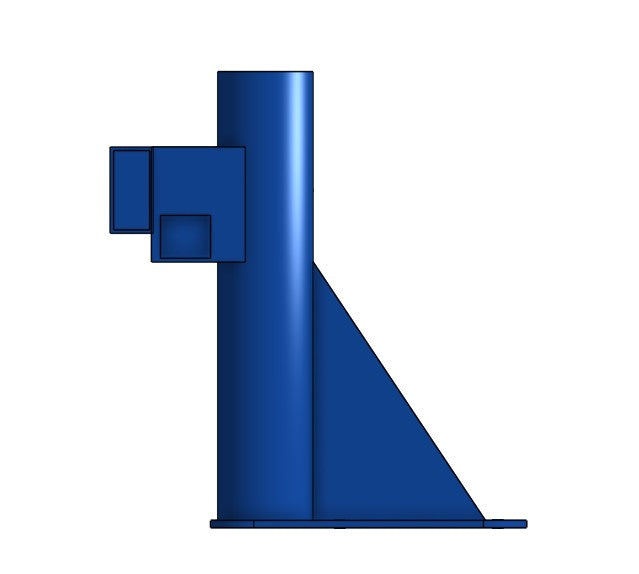

Dash Swing Gate:

The DASH Swing Gate is designed to protect any front loading drive-up/walkup enclosure from hook and chain attacks and add a layer of protection to the ATM vault.

Features:

Your Choice of Paint Color (PMS)

ATM Decal or Custom Logo

Custom Widths Available

DASH exclusive high security recessed locking system

Depth: 29”

Height: 31.75”

Height to top of gate: 26.5” (Customizable)

Weight: 415 lbs.

Base Plate: ½” Steel Plate

Bollards: 6” Schedule 80 Pipe

Hinge: Greaseable

Lock: Recessed R2 Restricted Lock with 2 keys

$1,800.00 - $1,800.00
$1,800.00
$1,800.00 - $1,800.00
$1,800.00

Delivery time

It takes time to build a high quality gate.  Our typical lead time is 8-12 weeks.  Call us for a more accurate lead time.

Recessed Key Locks

Recessed Key Locks

The recessed dual dead-bolt lock system is engineered for maximum resistance against forced entry. High-manganese armor, combined with a recessed housing and opposing bolt design, ensures protection against drilling, prying, and brute-force attacks.

  • Recessed housing reduces exposure to tools and tampering
  • Dual opposing dead-bolts eliminate single-point failure
  • Manganese steel armor work-hardens under drilling stress
  • Withstands >25,800 lbs of force in laboratory testing
  • Proven resistance to drilling, picking, prying, and punching
Branding Color

Branding Color

Enclosures and kiosks can be finished in any Pantone color, using automotive-grade polyurethane enamel. The coating resists fading and weathering, ensuring long-lasting brand visibility.

Branding Logo

Branding Logo

Each unit is supplied with high-quality cast vinyl “ATM” graphics, which can be replaced with custom bank logos or full graphic wraps to enhance visibility and branding.

Highest Quality Metal Construction

Highest Quality Metal Construction

Thickness matters when keeping your ATM safe. All of our swing gates are fully welded.  No screws or rivets are used in our swing gates. The base plate is constructed of ½” steel and the legs of Schedule 80 pipe allowing you to protect your ATM from chain attacks.

Pre-Drilled Enclosure Mounting Holes

Pre-Drilled Enclosure Mounting Holes

Each base includes ¾” pre-drilled anchor holes, making it simple to secure the kiosk to a concrete foundation.
